A3SS-XT7 雙切換過濾中心出水系統
A3SS-XT7 Double Switch Filter High Pressure Coolant System
一、性能、特點及用途--Performance,characteristics and application

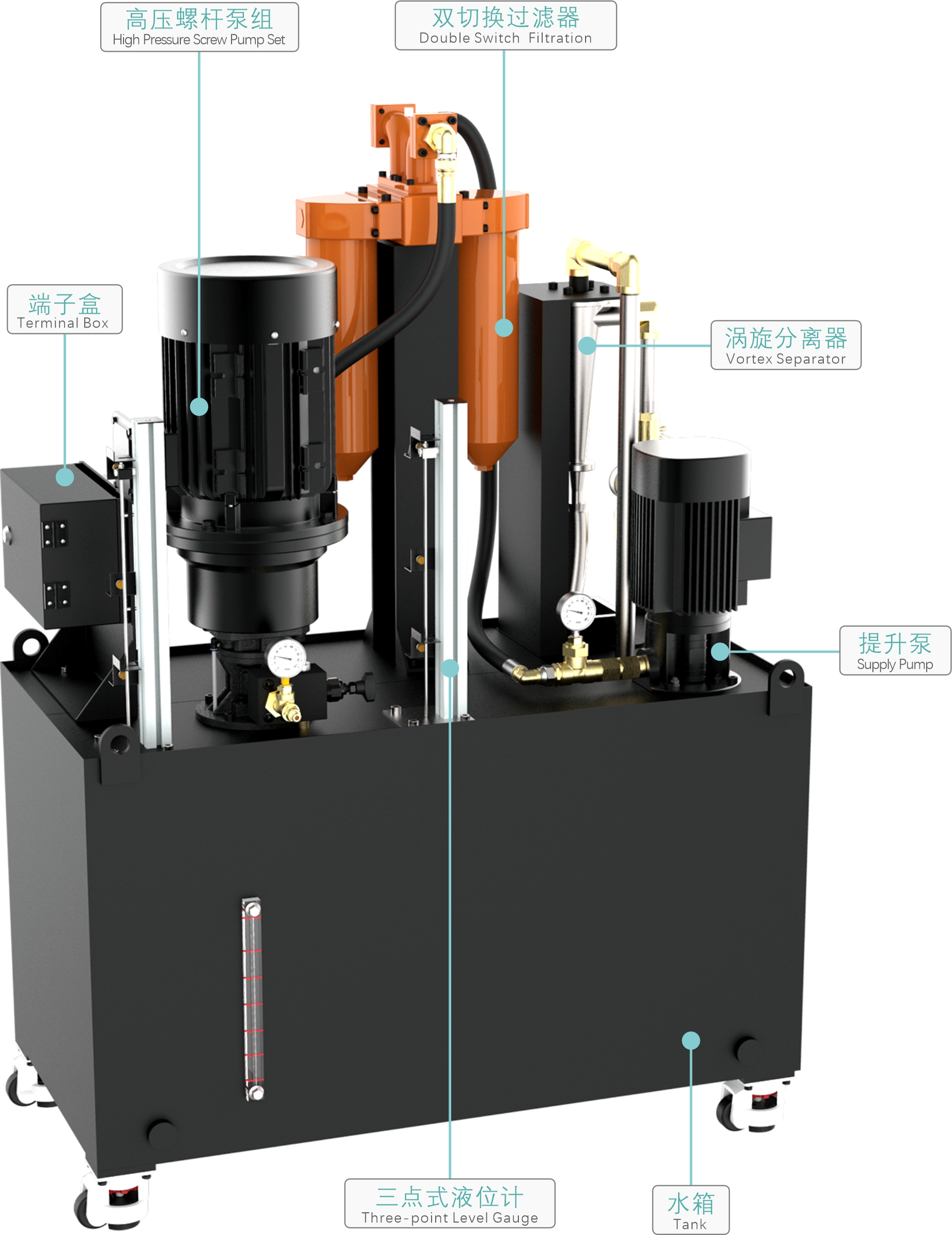

A3SS-XT7雙切換過濾系統雙筒式過濾器可用于24小時不停機工作的工況，正常工作情況下為單筒過濾工作，在更換濾芯時手動切換過濾方式，當一個過濾器報警時，切換為另一個清潔的濾筒工作，原則上可實現在線切換，以更換臟污濾筒。采用主副水箱的設計方式、液渣回收裝置，以及副水箱自帶提升泵。第一的過濾方式為渦旋過濾，當副水箱過濾完成后，提升泵將冷卻液輸送至雙切換過濾器輸送至主水箱，有效的保證在惡劣的工況下24小時不停機工作。
A3SS-XT7 double switch filter system Double cylinder filter can be used for 24 hours non-stop working conditions, under normal working conditions for single cylinder filter work, manually switch the filter mode when replacing the filter element, when a filter alarm, switch to another clean filter cylinder work, in principle can be realized online switch to replace dirty filter cylinder. The design method of the main and secondary water tanks, the liquid slag recovery device, and the lifting pump of the secondary water tanks are adopted. The filtration method of the first stage is vortex filtration. After the filtration of the secondary water tank is completed, the lift pump transmits the coolant to the double switch filter to the main water tank, which effectively ensures that the work is not shut down for 24 hours under harsh working conditions.
二、典型應用場景--Typical application scenario
適用于重切屑的工況，內置雙水箱過濾結構。兼容立式/臥式加工中心、車銑復合產線，五軸聯動機床，適應加工鋼件、鋁件、不銹鋼件。
Suitable for heavy chip cutting conditions, with built-in double water tank filtration structure. Compatible with vertical/horizontal machining centers, turning and milling production lines, five-axis linkage machine tools, and suitable for processing steel, aluminum, and stainless steel parts.
